gnuplot demo script: fillcrvs.dem

autogenerated by webify.pl on Fri Oct 28 21:05:04 2016
gnuplot version gnuplot 5.0 patchlevel 5
#
# $Id: fillcrvs.dem,v 1.6 2007/05/19 20:35:53 sfeam Exp $
#
### Demo for 'with filledcurves'


set title
set key outside

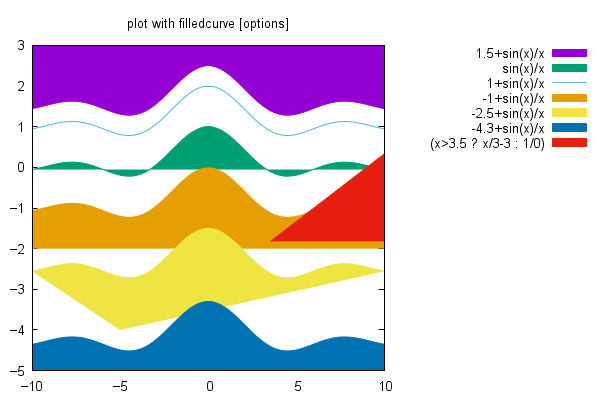

set title "plot with filledcurve [options]"
plot [-10:10] [-5:3] \
	1.5+sin(x)/x with filledcurve x2, \
	sin(x)/x with filledcurve, \
	1+sin(x)/x with lines, \
	-1+sin(x)/x with filledcurve y1=-2, \
	-2.5+sin(x)/x with filledcurve xy=-5,-4., \
	-4.3+sin(x)/x with filledcurve x1, \
	(x>3.5 ? x/3-3 : 1/0) with filledcurve y2

Click here for minimal script to generate this plot




set key on

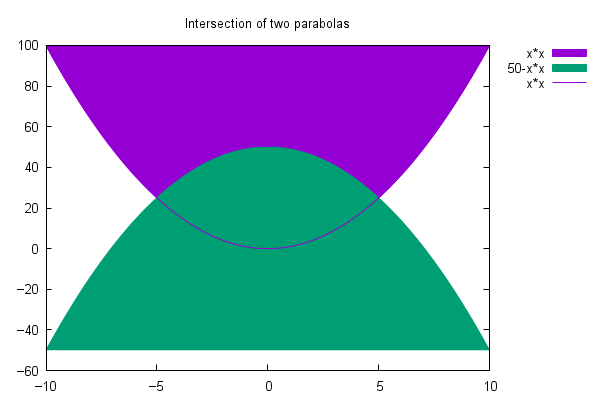

set title "Intersection of two parabolas"
plot x*x with filledcurves, 50-x*x with filledcurves, x*x with line lt 1

Click here for minimal script to generate this plot




set grid front
set title "Filled sinus and cosinus curves"
plot 2+sin(x)**2 with filledcurve x1, cos(x)**2 with filledcurve x1

Click here for minimal script to generate this plot




set title "The red bat: abs(x) with filledcurve xy=2,5"
plot abs(x) with filledcurve xy=2,5

Click here for minimal script to generate this plot




set title "Some sqrt stripes on filled graph background"
plot [0:10] [-8:6] \
	-8 with filledcurve x2 lt 15, \
	sqrt(x) with filledcurves y1=-0.5, \
	sqrt(10-x)-4.5 with filledcurves y1=-5.5

Click here for minimal script to generate this plot

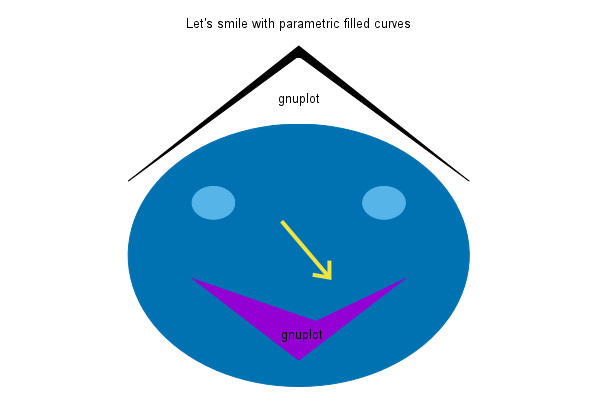

set title "Let's smile with parametric filled curves"
set size square
set key off
unset border
unset xtics
unset ytics
set grid
set arrow 1 from -0.1,0.26 to 0.18,-0.17 front size 0.1,40 lt 5 lw 4
set label 1 "gnuplot" at 0,1.2 center front
set label 2 "gnuplot" at 0.02,-0.6 center front
set parametric
set xrange [-1:1]
set yrange [-1:1.6]
plot [t=-pi:pi] \
	sin(t),cos(t) with filledcurve xy=0,0 lt 15,	\
	sin(t)/8-0.5,cos(t)/8+0.4 with filledcurve lt 3,	\
	sin(t)/8+0.5,cos(t)/8+0.4 with filledcurve lt 3,	\
	t/5,abs(t/5)-0.8 with filledcurve xy=0.1,-0.5 lt 1, \
	t/3,1.52-abs(t/pi) with filledcurve xy=0,1.8 lt -1

Click here for minimal script to generate this plot





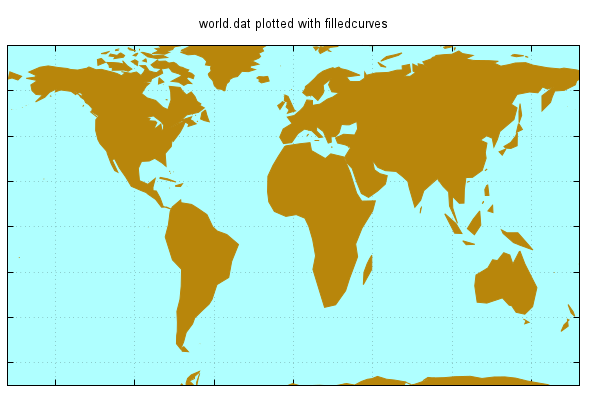

set title "world.dat plotted with filledcurves"
set format x ""
set format y ""
set grid layerdefault linewidth 0.5
set object  1 rect from graph 0, 0 to graph 1, 1 behind fc  rgb "#afffff" fillstyle solid 1.00 border -1
set xrange [ -180.000 : 180.000 ]
set yrange [ -70.0000 : 80.0000 ]
set lmargin  1
plot 'world.dat' with filledcurve notitle fs solid 1.0 lc rgb 'dark-goldenrod'

Click here for minimal script to generate this plot
