# Illustration of key positioning commands and concept.
#
# Dan Sebald, 7 nov 2004
#
set key default
set key box
set key samplen .2

set multiplot layout 3,3
set key ins vert
set key left top
set title "Key (ins vert left top)"
plot x,-x
set key center top
set title "Key (ins vert center top)"
replot
set key right
set title "Key (ins vert right top)"
replot
set key center left
set title "Key (ins vert center left)"
replot
set key cent
set title "Key (inside vertical center)"
replot
set key right
set title "Key (ins vert cent right)"
replot
set key bottom left
set title "Key (ins vert bot left)"
replot
set key bot center
set title "Key (ins vert bot center)"
replot
set key right
set title "Key (ins vert bot right)"
replot
unset multiplot

Click here for minimal script to generate this plot




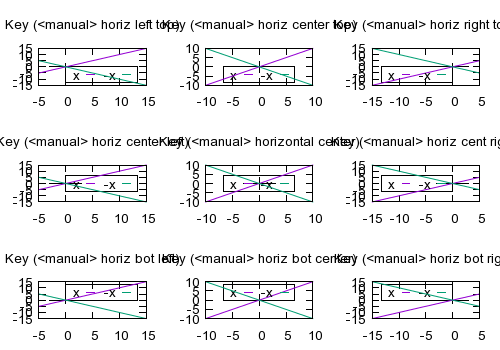

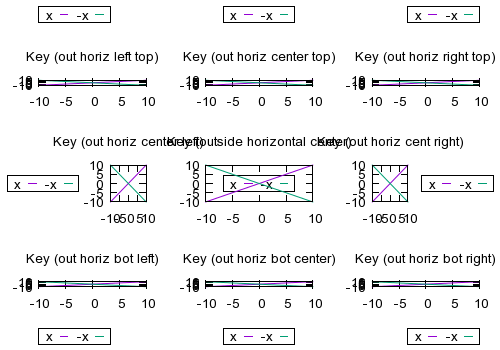

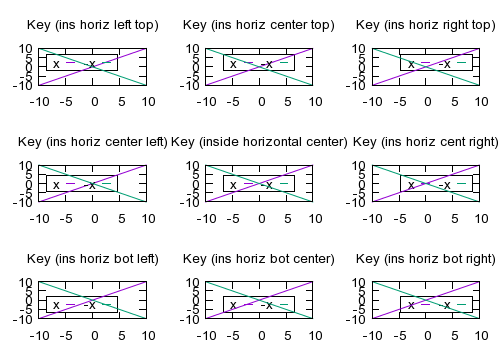

set multiplot layout 3,3
set key horiz
set key left top
set title "Key (ins horiz left top)"
replot
set key center top
set title "Key (ins horiz center top)"
replot
set key right
set title "Key (ins horiz right top)"
replot
set key center left
set title "Key (ins horiz center left)"
replot
set key cent
set title "Key (inside horizontal center)"
replot
set key right
set title "Key (ins horiz cent right)"
replot
set key bottom left
set title "Key (ins horiz bot left)"
replot
set key bot center
set title "Key (ins horiz bot center)"
replot
set key right
set title "Key (ins horiz bot right)"
replot
unset multiplot

Click here for minimal script to generate this plot




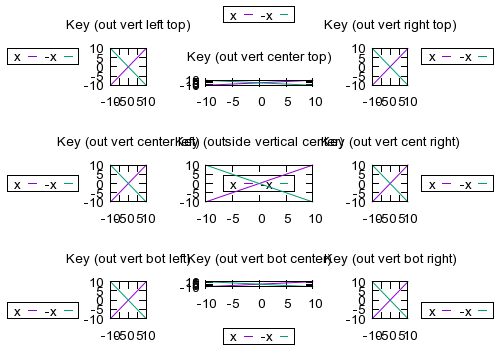

set multiplot layout 3,3
set key out vert
set key left top
set title "Key (out vert left top)"
replot
set key center top
set title "Key (out vert center top)"
replot
set key right
set title "Key (out vert right top)"
replot
set key center left
set title "Key (out vert center left)"
replot
set key cent
set title "Key (outside vertical center)"
replot
set key right
set title "Key (out vert cent right)"
replot
set key bottom left
set title "Key (out vert bot left)"
replot
set key bot center
set title "Key (out vert bot center)"
replot
set key right
set title "Key (out vert bot right)"
replot
unset multiplot

Click here for minimal script to generate this plot




set multiplot layout 3,3
set key horiz
set key left top
set title "Key (out horiz left top)"
replot
set key center top
set title "Key (out horiz center top)"
replot
set key right
set title "Key (out horiz right top)"
replot
set key center left
set title "Key (out horiz center left)"
replot
set key cent
set title "Key (outside horizontal center)"
replot
set key right
set title "Key (out horiz cent right)"
replot
set key bottom left
set title "Key (out horiz bot left)"
replot
set key bot center
set title "Key (out horiz bot center)"
replot
set key right
set title "Key (out horiz bot right)"
replot
unset multiplot

Click here for minimal script to generate this plot




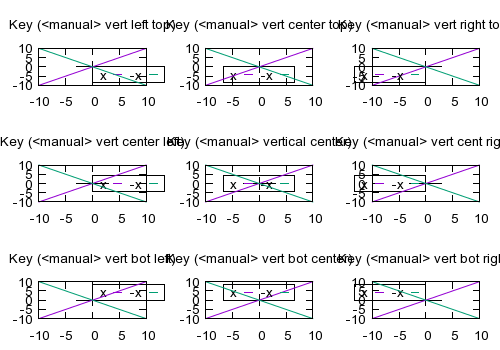

set multiplot layout 3,3
set key vert
set arrow 1 from -3,0 to 3,0 nohead lt -1
set arrow 2 from 0,-3 to 0,3 nohead lt -1
set key at 0,0 left top
set title "Key (<manual> vert left top)"
replot
set key at 0,0 center top
set title "Key (<manual> vert center top)"
replot
set key at 0,0 right
set title "Key (<manual> vert right top)"
replot
set key at 0,0 center left
set title "Key (<manual> vert center left)"
replot
set key at 0,0 cent
set title "Key (<manual> vertical center)"
replot
set key at 0,0 right
set title "Key (<manual> vert cent right)"
replot
set key at 0,0 bottom left
set title "Key (<manual> vert bot left)"
replot
set key at 0,0 bot center
set title "Key (<manual> vert bot center)"
replot
set key at 0,0 right
set title "Key (<manual> vert bot right)"
replot
unset multiplot

Click here for minimal script to generate this plot




set multiplot layout 3,3
set key horiz
set arrow 1 from -3,0 to 3,0 nohead lt -1
set arrow 2 from 0,-3 to 0,3 nohead lt -1
set key at 0,0 left top
set title "Key (<manual> horiz left top)"
set xrange [-5:15]
replot
set key at 0,0 center top
set title "Key (<manual> horiz center top)"
set xrange [-10:10]
replot
set key at 0,0 right
set title "Key (<manual> horiz right top)"
set xrange [-15:5]
replot
set key at 0,0 center left
set title "Key (<manual> horiz center left)"
set xrange [-5:15]
replot
set key at 0,0 cent
set title "Key (<manual> horizontal center)"
set xrange [-10:10]
replot
set key at 0,0 right
set title "Key (<manual> horiz cent right)"
set xrange [-15:5]
replot
set key at 0,0 bottom left
set title "Key (<manual> horiz bot left)"
set xrange [-5:15]
replot
set key at 0,0 bot center
set title "Key (<manual> horiz bot center)"
set xrange [-10:10]
replot
set key at 0,0 right
set title "Key (<manual> horiz bot right)"
set xrange [-15:5]
replot
unset multiplot

Click here for minimal script to generate this plot
