gnuplot demo script: dgrid3d.dem

autogenerated by webify.pl on Tue Jun 6 18:12:44 2017
gnuplot version gnuplot 5.2 patchlevel rc2
set view 60,75
unset key
set hidden3d

# Raw data
set title "The Valley of the Gnu"
splot "gnu-valley" u 1:2:3 w linesp

Click here for minimal script to generate this plot




# Splines
set title "dgrid3d splines"
set dgrid3d splines
splot "gnu-valley" u 1:2:3 w lines

Click here for minimal script to generate this plot




# QNorm
set title "dgrid3d 30,30 qnorm 1"
set dgrid3d 30,30 qnorm 1
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 qnorm 2"
set dgrid3d 30,30 qnorm 2
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 qnorm 3"
set dgrid3d 30,30 qnorm 3
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 qnorm 4"
set dgrid3d 30,30 qnorm 4
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 qnorm 5"
set dgrid3d 30,30 qnorm 5
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot





# Gauss
set title "dgrid3d 30,30 gauss 1"
set dgrid3d 30,30 gauss 1
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 gauss .75"
set dgrid3d 30,30 gauss .75
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 gauss .5"
set dgrid3d 30,30 gauss .5
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 gauss .35"
set dgrid3d 30,30 gauss .35
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 gauss .25"
set dgrid3d 30,30 gauss .25
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot




set title "dgrid3d 30,30 gauss .5,.35"
set dgrid3d 30,30 gauss 0.5,0.35
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot

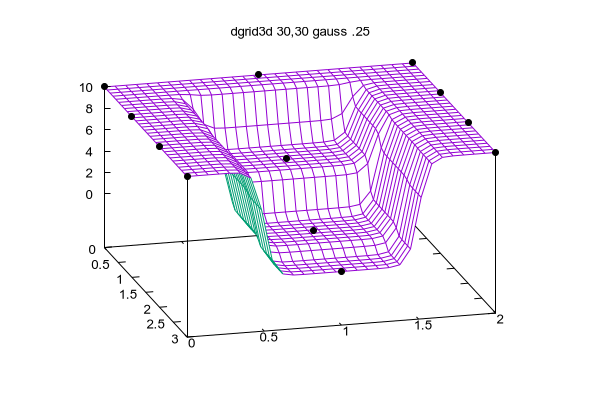

set title "dgrid3d 30,30 gauss .35,.5"
set dgrid3d 30,30 gauss 0.35,0.5
splot "gnu-valley" u 1:2:3 w l

Click here for minimal script to generate this plot
